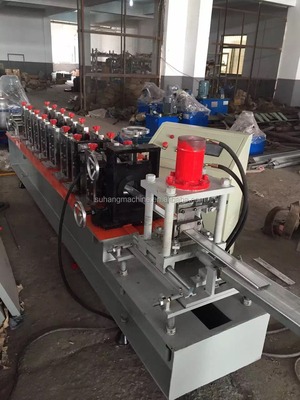

PLC Control 12 Stations Chain Transmission Metal Shutter Door Roll Forming Machine
Shutter Door Technical Parameter
1. Steel Sheet Thickness: 0.7-1.2mm (depend on requirement )
2. Hydraulic power: 4Kw
3. Transmission way: chain
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min (not include cutting and punching stop time)
7. Roller Groups: 12 stations upper and 16 stations down
8. Roller Material: GCr15 steel, quenching treatment
9. Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 7.5 Kw
Shutter Door Main Components
| S.N | Equipment name | Quantity |
| 1. | 3T passive un-coiler | 1 set |
| 2. | Feeding and leveling device | 1 set |
| 5. | Main roll forming machine 12 stations drived by chain
| 1 set |
| 6. | Hydraulic station | 1 set |
| 7. | Control system (including control box) | 1 set |
| 8. | Out tables | 2 sets |
| 9. | Spare Parts | 2 packages |
Working Flow of Guardrail Roll
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Guardrail Roll
Company Introduction
Wuxi Suhang Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
