Descrição de produto

Product Description

We are No.1 factory of C Z purlin machine in North of China Area.We sold about 120 sets C Z purlin machine every year.We can supply you the best technical design as your requirement.

Recommend Products

Double layer forming machine sandwich panel production line Steel coil slitting production line

Specification

1	Suitable to process	Color steel plate
2	Width of the purlin	80-300mm
3	Thickness of the plate	1.5-3mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	15 rows
6	Diameter of the roller	85 mm
7	Rolling material	Cr15
8	Main motor power	22kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	22kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	16mm
14	Main structure of the machine	350 H steel
15	Weight	About 10 T
16	Dimensions	101.21.6m
17	Voltage	380V 50Hz 3phases(changeable as needs)
18	Certificate	CE/ISO
19	Custom	According to customer's requirements

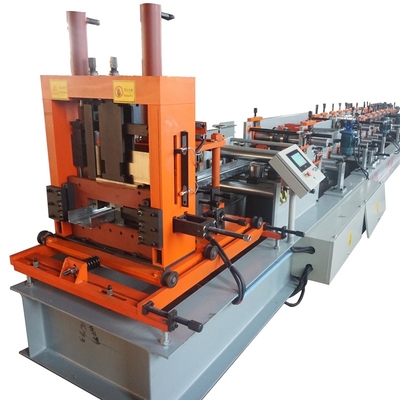

C Z PURLIN ROLL FORMING MACHINE C Z STEEL CHANNEL ROLL FORMING MACHINE

Our Advantages

LARGE CNC MILLING MACHINE

metal steel profile roof tile cold roll forming machineunique plant in Hebei Province.metal steel profile roof tile cold roll forming machine directly mills the entire frame. The milling machine can make the ‘machine's large surface smoother and the machine is more perfect.

ENVIRONMENT-FRIENDLY SPRAYING EQUIPMENT

metal steel profile roof tile cold roll forming machine electrostatic spraying equipment meets the environmental protection regulations of the Chinese government and guarantees the delivery time of the machine.metal steel profile roof tile cold roll forming machine

NEW CNC MILLING

metal steel profile roof tile cold roll forming machineto make the backboard of purlin machine, also make the holes on backboard This milling machine can milling the backboard more level, hole place is more precious. metal steel profile roof tile cold roll forming machine can make the roller more level after installing,and then the purlin will be more straight.

ELECTRICAL CONTROL

metal steel profile roof tile cold roll forming machine make by ourselves. metal steel profile roof tile cold roll forming machine have a professional engineer to design and make the control system. can make sure the after-sale service, when customer have problem with control, we can solve it timely.

Customer Reviews

Packing & Delivery

Packaging Details:	Main machine is nude, the computer control box is packed with wooden frame.
	Main machine is nude in the container, the computer control box is packed with wooden packaging.
Delivery Detail:	20 days

FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK.

2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you. metal steel profile roof tile cold roll forming machine

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you. metal steel profile roof tile cold roll forming machine

3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.metal steel profile roof tile cold roll forming machine

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skyp. metal steel profile roof tile cold roll forming machine
